研究級氙燈光源LH75-300W

名稱: 研究級氙燈光源LH75-300W

型號: LH系列

品牌: 努美科技/Sciencetech

  • 詳細信息

特征

? 垂直或水平燈泡和外殼操作

? 氙弧燈功率從75W到300W

? 多種尺寸,材料和涂層的多個準直或聚焦輸出光學器件

? 人性化設計

? **可用配件

? 標準安全聯鎖



應用領域

? 涂料耐久性測試

? 光生物學

? 光化學

? 光譜學



1、總覽

Sciencetech為研究應用提供了多種弧光燈源。短弧燈是高壓放電燈。這些燈因其高輻射和高亮度而特別適合于光學應用。放電電弧在兩個電極之間自由燃燒產生光。電弧的長度取決于兩個電極之間的距離,通常只有幾毫米。這使得弧光燈成為理想的點光源。



這本小冊子重點介紹了Sciencetech的氙弧燈光源,燈殼內充滿高壓氙氣,可提供廣泛的照明波長。

您可以從第4頁的便捷包裝中選擇一種(包括光學器件,外殼,燈泡和電源以及所有互連),也可以從我們的模塊化組件中構建自己的組件,從而**滿足您的要求。設計為可在垂直或水平模式下運行,并且隨附有用于兩個方向的基板。在下面的配置部分中,根據反射器類型(準直輸出為球形,聚焦光束為橢圓形)和所需的弧光燈選擇外殼,并添加兼容的電源和燈。**后,添加適合您的應用的光學器件。有關一些預配置的軟件包,請參見手冊。



2、配置-燈箱

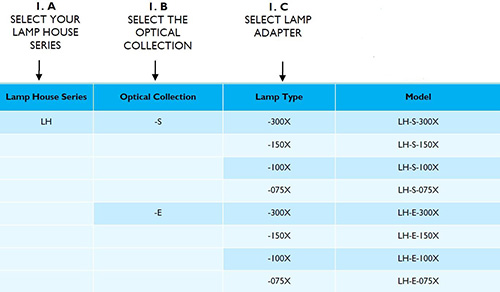

選擇信息

-S球面反射鏡和透鏡集合-Sciencetech小系列太陽模擬器的標準配置!

-E橢圓形反射鏡系列,F(xiàn) / 4.5,設計簡單,可與Sciencetech的光纖太陽模擬器一起使用!



2,配置-輸出光學

Sciencetech的準直(COL)和成像(IO)光學組件系列提供多種光學耦合選項。 下表提供了有關鏡頭組件配置和所用鏡頭材料的信息。 COL光學元件安裝在75毫米長的鏡筒中。 根據選擇的配置,IO光學器件可能會插入長度大于或小于75mm的透鏡套管中。

COL—Collimating Line of Optical Assemblies
Optic
Family
ModelAperture
Ratio (F/#)
Standard
Material
Spectral
Range
Description
COL -A ¥1.50 Fused Silica 230-2500nm Single planoconvex spherical lens.
  -B ¥1.00 Fused Silica 230-2500nm Two lens system (minimizes spherical aberration).
  -C ¥0.60 BK7 360-2500nm Aspheric system for maximum throughput and minimal spherical aberration with a 1 lens system.
  -D ¥0.70 Fused Silica 230-2500nm Three lens system, best compensation of spherical aberration. Recommended for high quality collimation.
IO—Imaging Optics Line of Optical Assemblies
Optic
Family
ModelAperture
Ratio (F/#)
Standard
Material
Spectral
Range
Description
IO -A Varies Fused Silica 230-2500nm Single planoconvex spherical lens.
  -B Varies Fused Silica 230-2500nm Two lens system (minimizes spherical aberration).
  -C Varies BK7 360-2500nm Aspheric system for maximum throughput and minimal spherical aberration with a 1 lens system.
  -D Varies Fused Silica 230-2500nm Three lens system optimized for best compensation of spherical aberration. Recommended for very high quality imaging.

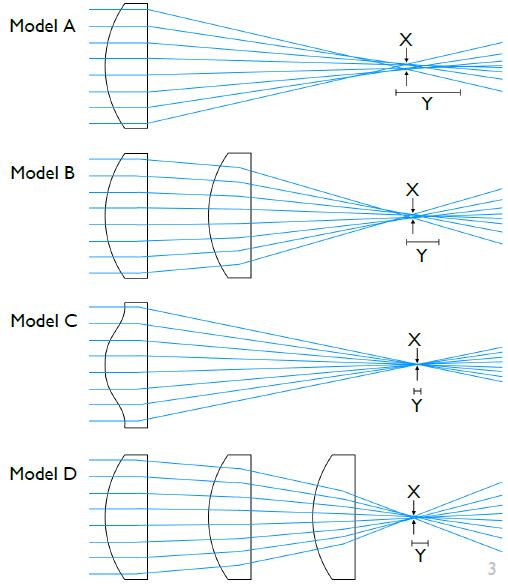

A型-單平凸球面透鏡:**簡單,成本**低的選擇,但聚焦時光斑尺寸**,而準直時光斑質量**差。



B型-兩透鏡系統:一種中間選件,聚焦后的光斑尺寸小于A型,并且準直時的準直度更高。



C型-單非球面透鏡:校正球面像差的**選擇,Y聚焦時**小光斑尺寸(X),準直時具有**質量準直。 僅適用于BK7或類似玻璃。



D型-三透鏡系統:一種高質量的選件,與Model A或Model B相比,聚焦時的光斑尺寸更小,或者在準直時具有更高的質量準直。它的材料范圍也比Model C多。



X =**小模糊圓(斑點大小)

Y =縱向球差



2.配置-輸出光學

在確定適合您的應用的準直光學器件或準直和成像光學器件之后,請使用下表在每個領域中為您的應用選擇**的折射光學器件。 此外,在需要反射光學元件的應用中,準直鏡選件有**和鋁保護膜可供選擇(請參閱第5頁)。 如果您在下表中找不到適合您的應用的光學元件,請與我們聯系! 可根據要求提供許多其他選項。



配置-輸出光學-準直

從以下選項中為您的應用選擇準直光學鏡的透鏡配置,直徑和材料。 以下是示例訂單:COL-A-1-FS該示例訂單包含具有單平凸透鏡配置,直徑25.4 mm且由熔融石英制成的準直光學器件。

Example: COL A I FS
Model Number Lens Configuration Diameter2 Material Options3
Code Description Code Description Code Description Code Description
COL Collimating Optics A Single lens 1 25.4mm diameter optics -UV UV Fused Silica
    B Two lens system 2 50.8mm diameter optics -FS Fused Silica
    C Aspheric lens system1     -G BK7 Glass or Equivalent
    D Three lens system     -CF Calcium Fluoride Glass



配置-輸出光學-成像

從以下選項中選擇適合您應用的成像光學元件的孔徑比,透鏡配置,直徑和材料。 以下是示例訂單:IO-3.5-D-1-FS該示例訂單包含具有F / 3.5,三透鏡系統鏡頭配置,直徑25.4毫米,由熔融石英制成的成像光學元件。

Example:  IO 3.5 D I FS
Model Number F/# - Aperture Ratio Lens Configuration Diameter Material Options
Code Description Code Description Code Description Code Description Code Description
IO Imaging
Optics
#.# F/# of the optical system A Single lens 1 25.4mm diameter optics -UV UV Fused Silica4
        B Two lens system 2 50.8mm diameter optics -FS Fused Silica4
        C Aspheric lens system1     -G BK7 Glass or Equivalent4
        D Three lens system     -CF Calcium Fluoride Glass4


1.僅適用于BK7或類似玻璃。

2.確保如果引用了多組光學器件,則所有光學器件都是兼容的,例如,確保所有光學器件的直徑相同。

3.添加可選項目將在銷售訂單上顯示為自定義訂單項。

4.可選配厚度優化為550nm的MgF2單層抗反射涂層。





直徑為1英寸的COL光學組件




直徑2英寸的COL光學組件





2.配置-輸出光學-材料選擇

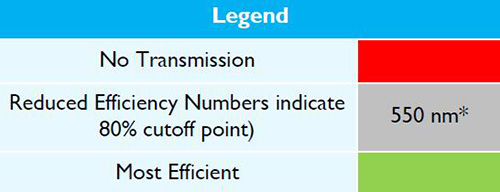

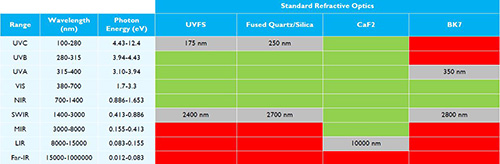

可以選擇不同的材料在不同的波長范圍內傳輸。 下表中列出了一些**常見的選項,以快速參考每種材料的**有用范圍。



如果您在下表中找不到適合您的應用的光學元件,請與我們聯系! 可根據要求提供許多其他選項。







2.配置-輸出光學-反射光學

MR6 Collimating Mirror Options
ModelAperture Ratio (F/#)Clear ApertureReflective SurfaceSpectral RangeDescription
MR64 4 25 mm Protected Aluminum 400nm-20µm 25mm diameter F/4 off-axis parabolic mirror with protected aluminum coating on a kinematic adjustable mount.
MR64-G 4 25 mm Gold 360nm—Far IR Gold-coated 25mm diameter F/4 off-axis parabolic mirror on a kinematic adjustable mount.
MR62 2 50 mm Protected Aluminum 400nm-20µm 50mm diameter F/2 off-axis parabolic mirror with protected aluminum coating on a kinematic adjustable mount.
MR62-G 2 50 mm Gold 360nm—Far IR Gold-coated 50mm diameter F/2 off-axis parabolic mirror on a kinematic adjustable mount.

Sciencetech的MR6準直鏡系列產品是安裝在外殼中的離軸拋物面鏡,該附件可以通過OAP安裝附件連接到任何LH系列燈外殼。 MR6外殼包括一個三點可調式運動學安裝座,該安裝座上帶有細間距的螺釘,以優化輸出光學器件與弧光燈的對準。

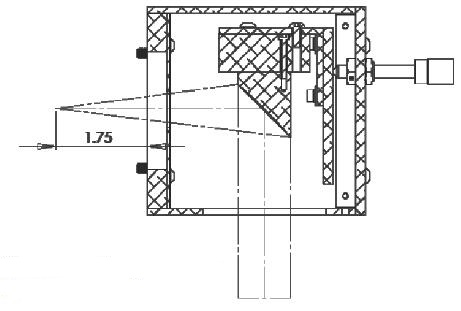

燈箱中的MR64準直鏡



2.配置-輸出光學-應用程序配置

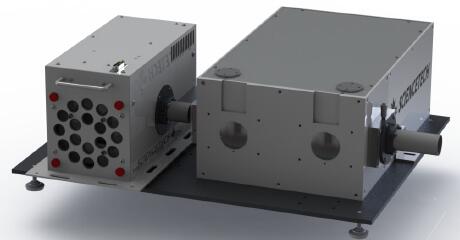

若要將Sciencetech LH系列燈罩與Sciencetech的單色儀之一配合使用,首先需要將光從燈罩中準直,然后通過將成像光學器件與單色儀匹配的F耦合到單色儀中。 有關將LH系列弧光燈源與某些Sciencetech流行的單色儀耦合的準直和成像光學器件,請參見下表。

Monochromator
Model
Monochromator
F/#
Collimating
Optics
Imaging
Optics
9055F 2.5 COL-A-1-FS IO-2.5-D-1-FS
9010F 2.6 COL-A-1-FS IO-2.6-D-1-FS
9030 3.2 COL-A-1-FS IO-3.2-D-1-FS
9072/9055 3.5 COL-A-1-FS IO-3.5-D-1-FS
9040 4 COL-A-1-FS IO-4.0-D-1-FS
9040 5.2 COL-A-1-FS IO-5.2-D-1-FS
9057F 5.9 COL-A-1-FS IO-5.9-D-1-FS
9040 6.9 COL-A-1-FS IO-6.9-D-1-FS
9490 7.4 COL-A-1-FS IO-7.4-D-1-FS
9057 8 COL-A-1-FS IO-8.0-D-1-FS
9490 9.7 COL-A-1-FS IO-9.7-D-1-FS
9490 12 COL-A-1-FS IO-12.0-D-1-FS
9150 13 COL-A-1-FS IO-13.0-D-1-FS



EXAMPLE ORDER, 300W TUNABLE LIGHT SOURCE:
LH-S-300X (101-9001)
XE300 (650-0050)
601-300 (150-9100)
COL-A-1-FS (110-9001)
IO-3.5-D-1-FS (110-XXXX)





Sciencetech的LH系列燈罩配置為300W Xe弧光燈,300W無臭氧Xe弧光燈,兼容的300W Xe弧光燈觸摸屏電源,準直25.4毫米直徑熔融石英光學元件和與Sciencetech的f匹配的熔融石英成像光學元件 9055。



3.燈的選擇

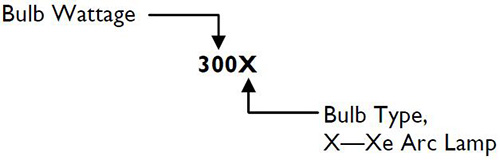

氙弧燈需要作為單獨的訂單項包含在您的訂單中。以下信息應用于幫助為您的燈罩配置和應用選擇合適的弧光燈!

Lamp HousingCompatible
Bulb Model
Bulb
Wattage
Spectral
Range
Ozone
Producing
-300X XE300 300W 250-2500 nm NO
-300X XE300-UV 300W 200-2500 nm YES
-150X XE150 150W 250-2500 nm NO
-150X XE150-UV 150W 200-2500 nm YES
-100X XE100 100W 250-2500 nm NO
-075X XE075 75W 250-2500 nm NO

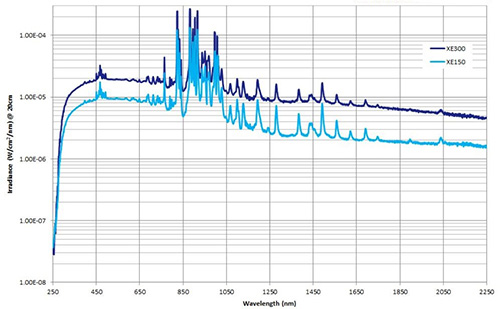

氙燈光譜



4.電源

Sciencetech的601系列電源是與Sciencetech的LH系列燈箱配合使用的兼容電源。 訂購時,請確保您的電源型號與系統的弧光燈功率匹配。

Bulb Type Power Supply Model
-300X 601-300
-150X 601-150
-100X 601-100
-075X 601-075



Sciencetech 601隨附的標準功能

–系列電源:

? 觸摸屏界面

? 快門和曝光控制(如果提供了電子快門*)

? 用于燈泡電源,冷卻和通信的單連接

? 燈泡啟動和計時器日志

? 風扇冷卻安全聯鎖

? RS232計算機控制軟件GUI

*高速百葉窗需要單獨的控制器



可選升級:

? 溫度監控器

? 光學反饋

? 遠程燈狀態監控

? 自動燈啟動



5.配件

Sciencetech為您的光源外殼配備了許多配件,例如與Sciencetech的各種光譜濾光片配合使用的濾光盒或朝下的支架。

下表列出了與LH系列外殼兼容的Sciencetech附件,因此您可以根據自己的應用量身定制Sciencetech系統。

  Model SKU Description
Filter Boxes FH2-1 100-8010 One position filter box for 2” (50 mm) filters—uncooled
FH1-1 100-8011 One position filter box for 1” (25 mm) filters—uncooled
FH3-1 100-8012 One position filter box for 3” (75 mm) filters—uncooled
FH1-2 100-8013 Two position filter box for 1” (25 mm) filters—uncooled
FH3-2 100-8014 Two position filter box for 3” (75 mm) filters—uncooled
Variable Focus Assemblies VF2 100-8046 Variable focus optical assembly, 2” diameter BK7 optics
VF2-UV 100-8047 Variable focus optical assembly, 2” diameter fused silica optics
Beam Turners CTBT-2 160-9005 Beam turning assembly for LH series light sources
Stands LH-DFS 100-8015 Downward facing stand for LH series light sources
Fiber Couplings FBC-1 100-8028 Fiber bundle coupler, non SMA, 1”
FBC-2 100-8029 Fiber bundle coupler, non SMA, 2”
FBC-SMA-2 100-8030 SMA fiber coupler, 2” flange
FBC-SMA-1 100-8031 SMA fiber coupler, 1” flange
Shutters MS-2 160-8040 Manual Shutter for 2” Output Optics
SH-HS 165-8033 High speed shutter for LH series light sources and SF/SLB solar simulators

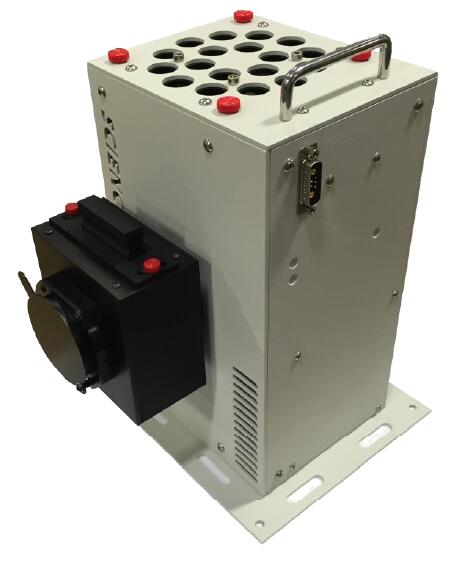

LH-S-300X with FH2-1 and MS-2

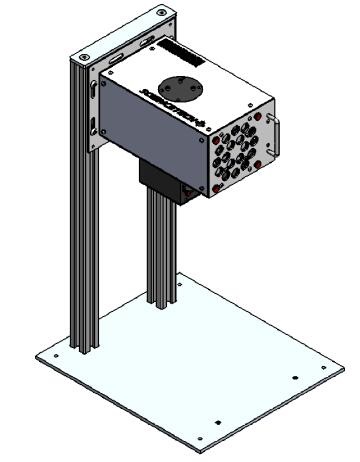

LH-DFS

6,尺寸

Overall H x W x L 170 x 182.9 x 322.6 mm
Weight 5 kg
Optical Height 68.6 mm or 80-100 mm
Mounting Options 1/4-20 leveling feet—M6-M8 through holes—76.2 mm spacing



7,訂購信息

ModelSKUDescription
LH-S-300X 101-9001 LH– series lamp house with spherical back reflector for 300W xenon arc lamps.
LH-S-150X 101-9002 LH– series lamp house with spherical back reflector for 150W xenon arc lamps.
LH-S-100X 101-9003 LH– series lamp house with spherical back reflector for 100W xenon arc lamps.
LH-S-075X 101-9004 LH– series lamp house with spherical back reflector for 75W xenon arc lamps.
LH-E-300X 101-9005 LH– series lamp house with elliptical back reflector for 300W xenon arc lamps.
LH-E-150X 101-9006 LH– series lamp house with elliptical back reflector for 150W xenon arc lamps.
LH-E-100X 101-9007 LH– series lamp house with elliptical back reflector for 100W xenon arc lamps.
LH-E-075X 101-9008 LH– series lamp house with elliptical back reflector for 75W xenon arc lamps.
601-300 150-9100 Power supply for LH– series housing and 300W xenon arc lamp.
601-150 150-9101 Power supply for LH– series housing and 150W xenon arc lamp.
601-100 150-9102 Power supply for LH– series housing and 100W xenon arc lamp.
601-075 150-9103 Power supply for LH– series housing and 75W xenon arc lamp.
XE300 650-0050 300W xenon arc lamp, non-ozone producing.
XE150 650-0091 150W xenon arc lamp, non-ozone producing.
XE150-UV 650-0084 150W xenon arc lamp, ozone producing.
XE100 650-0028 100W xenon arc lamp, non-ozone producing.
XE075 650-0007 75W xenon arc lamp, non-ozone producing.
601-CABLE 150-7007 Replacement power supply cable for 601– series power supply and LH– series housing.



8,光源套件

我們方便的光源套件包括燈罩,光學組件,電源和燈泡,這是您開始使用研究級光源所需的一切。

還有許多其他選項可供選擇,因此,如果這些軟件包不能**滿足您的需求,請聯系Sciencetech技術**以獲取更多選項。

Product CodeDescription of Research Grade Arc Lamp SourceCollimated or FocusedPower (W)Aperture Ratio (F/#)Lens TypeClear Aperture (mm)Material
101-9101 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free Collimated 75 1.5 A 25.4 FS
  75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free Collimated 75 1 B 25.4 FS
  75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free Collimated 75 2 A 25.4 FS
  75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free Collimated 75 0.6 C 25.4 G
  75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free Collimated 75 0.7 D 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free Collimated 150 1.5 A 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-producing Collimated 150 1.5 A 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free Collimated 150 1 B 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free Collimated 150 2 A 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free Collimated 150 0.6 C 25.4 G
  150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free Collimated 150 0.7 D 25.4 FS
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-free Collimated 150 1.5 A 50.8 FS
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-producing Collimated 150 1.5 A 50.8 FS
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.0, Two Lens System, Fused Silica, O3-free Collimated 150 1 B 50.8 FS
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/2.0, Single Lens, Fused Silica, O3-free Collimated 150 2 A 50.8 FS
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.6, Aspheric Lens, Glass, O3-free Collimated 150 0.6 C 50.8 G
  150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.7, Three Lens System, Fused Silica, O3-free Collimated 150 0.7 D 50.8 FS
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free Collimated 300 1.5 A 25.4 FS
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-producing Collimated 300 1.5 A 25.4 FS
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free Collimated 300 1 B 25.4 FS
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free Collimated 300 2 A 25.4 FS
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free Collimated 300 0.6 C 25.4 G
  300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free Collimated 300 0.7 D 25.4 FS
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-free Collimated 300 1.5 A 50.8 FS
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-producing Collimated 300 1.5 A 50.8 FS
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.0, Two Lens System, Fused Silica, O3-free Collimated 300 1 B 50.8 FS
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/2.0, Single Lens, Fused Silica, O3-free Collimated 300 2 A 50.8 FS
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.6, Aspheric Lens, Glass, O3-free Collimated 300 0.6 C 50.8 G
  300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.7, Three Lens System, Fused Silica, O3-free Collimated 300 0.7 D 50.8 FS
  150 W Focused Research Grade Arc Lamp Source, 2 inch, F/4.5, O3-free Focused 150 4.5 - 50.8 -
  300 W Focused Research Grade Arc Lamp Source, 2 inch, F/4.5, O3-free Focused 300 4.5 - 50.8 -
